Compacted/stranded
Milliken Copper conductor,Semiconducting taped,Semiconducting extruded,Crosslinked polyethylene insulated,Semiconducting extruded, waterblocking taped,Cu tape+Cu wire screened,water blocking taped,Poly-Al laminated taped & Overall HDPE outer sheathed 132kV EHV Cable - Polycab EHV Cu CS+PAL 132kV - 55339

Polycab EHV Cu CS+PAL 132kV

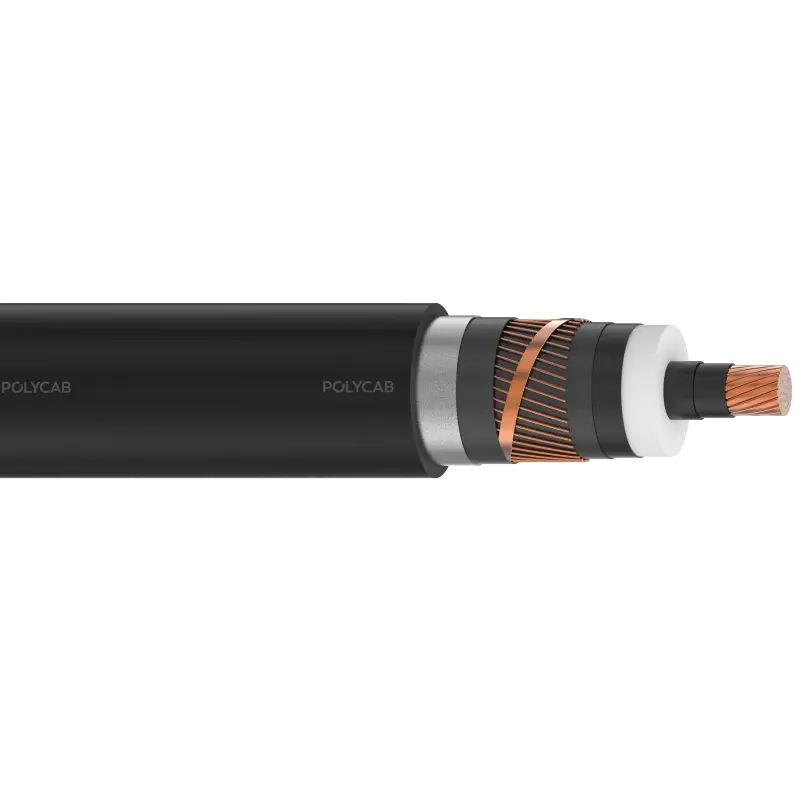

Compacted/stranded Milliken Copper conductor,Semiconducting taped,Semiconducting extruded,Crosslinked polyethylene insulated,Semiconducting extruded, waterblocking taped,Cu tape+Cu wire screened,water blocking taped,Poly-Al laminated taped & Overall HDPE outer sheathed 132kV EHV Cable

To avail GTP, please send us a request on ambarin.sayyed@polycab.com

High life

UV resistant

Longitudinal water resistant

Radial water resistant

POLYCAB HV 76/132 KV (145 kV) XLPE insulated cable with copper conductor is suitable to use in high voltage transmission for external and direct burial applications in power network system.

Product Type

EHV Power Cable

Certifications

Standards

IEC 60840

ICEA S-108-720
